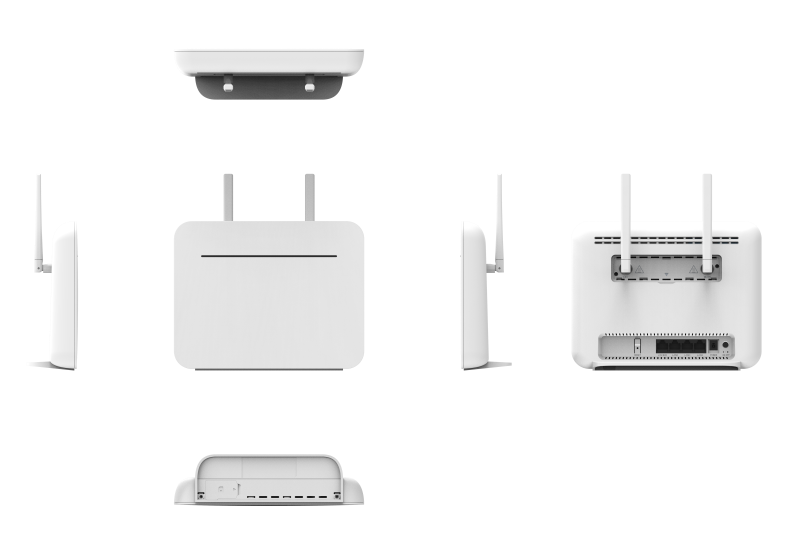

C10

Market Orientation

4G（FDD LTE）CPE

Cat.6 MIMO (4X4)

General Info

Appearance

white   ---- Support

Dimension

210*165.5*53 mm

Weight

200g

Hardware Info

Chipset

Marvell(ASR) 1826 ；WIFI：MTK7621DA

Freq

1/2/3/5/7/8/17/20/B66/38/40/41（option）

Memory

Flash

RAM 1Gb LPDDR2  +  ROM 1Gb Nand flash

Wi-Fi Bands

Wi-Fi Bands

5 GHZ (802.11 b/g/n/ac)

Power Supply

Power Supply

Input: AC100 – 240V, 50/60Hz,Output: DC12V, 1A

Software

Operating System

Windows XP above Service Pack 3,

Windows 7/8/10, Linux, MAC O.S.

Language

Default

*English

Voice

Voice

NO

External

RJ45*1000M*4（1 WAN/LAN +3 LAN）,, Reset Key,

WPS Key, DC power jack, Power Switch Button,  USIM Slot

,Internal antenna & External antenna compatible

Launch time

Q1 2020

KSP

1. Supports DHCP protocol to set dynamic Ips

2.- Built-in web server for web-based configuration

3.- Password protected access and configuration

4.- Support FOTA

5.- Support TR069 if needed

6.- Max 32 Users

7.- 50 mts outdoors, 30 mts indoors coverage area
